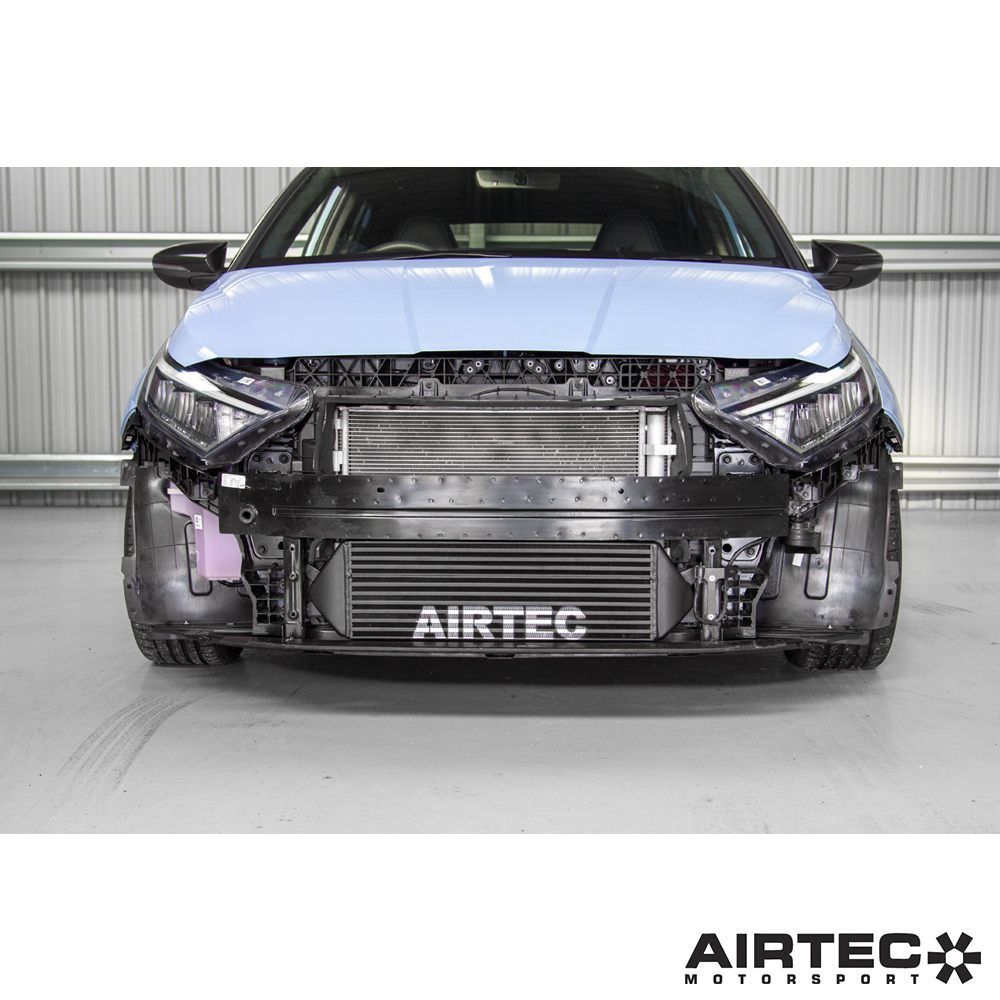

As part of our expanding Hyundai platform product range, AIRTEC Motorsport is proud to launch our intercooler kit for the i20N suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a stepped core design that is taller and measures up to 130mm in depth. This offers a massive 71% increase in overall capacity in comparison to the original intercooler, as well as a 55% increase in frontal area over standard, which allows it to make the most of the air flow provided.

The inlet and outlet size of the intercooler also increases from 50mm to 63mm in diameter to further improve flow and can be used with the original pipework or our AIRTEC Motorsport larger diameter cold side boost pipe.

Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement and comes with Pro Hoses silicone connectors/reducers, all fixtures and fittings, as well as detailed fitting instructions.

Dimensions:
OEM Intercooler
Width: 600mm
Height: 123mm
Depth: 90mm
Capacity: 6.6 litres
Front area: 7,380cm²

AIRTEC Motorsport Intercooler
Width: 600mm
Height: 190mm
Depth: 130/90mm stepped
Capacity: 11.3 litres
Front area: 11,400cm²

Features:

• Huge increase in cooling ability
• Reduced charge temperatures
• 71% increase in capacity compared to original intercooler
• 55% increase in frontal area compared to original intercooler
• High-flow, moulded one-piece cast end tanks
• Internal air diverter
• Larger inlet and outlets
• Powder coated black finish
• All fittings and fixtures included
• Detailed fitting guide included

Registered Design Right number: Application Pending

AIRTEC Part No: ATINTHYU4
